LED Underground Light UG990_LED Inground Lights_Landscape Lighting_Landscape Lighting_Supply

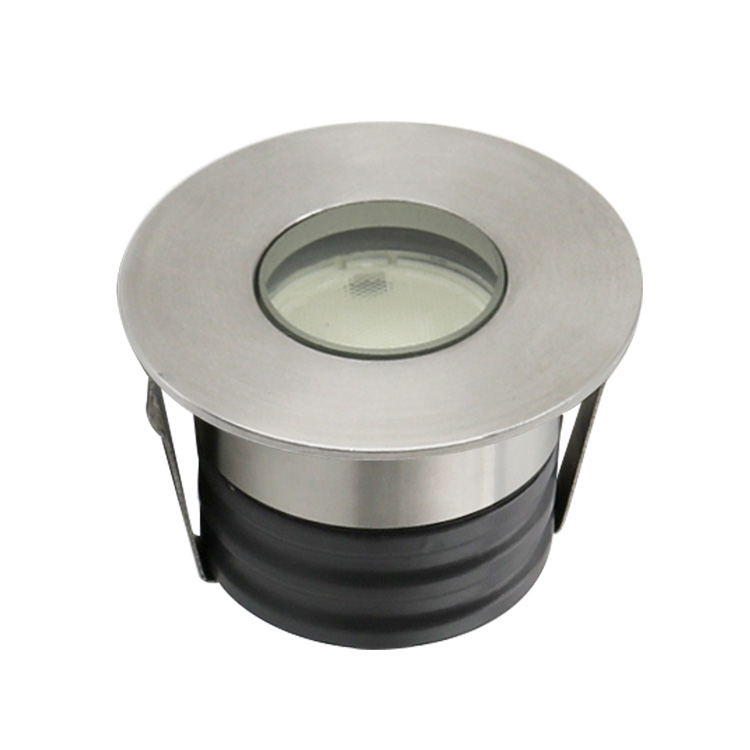

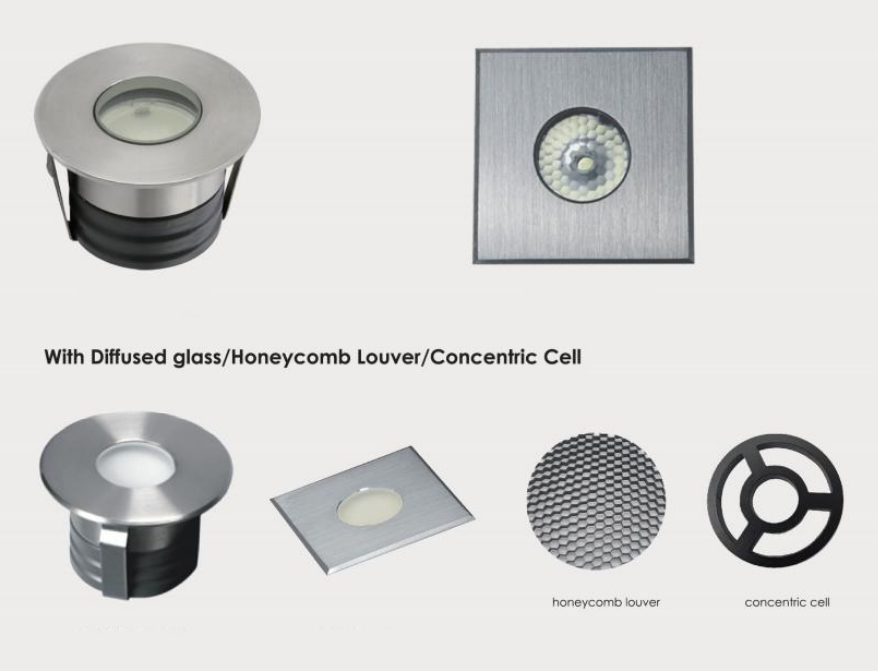

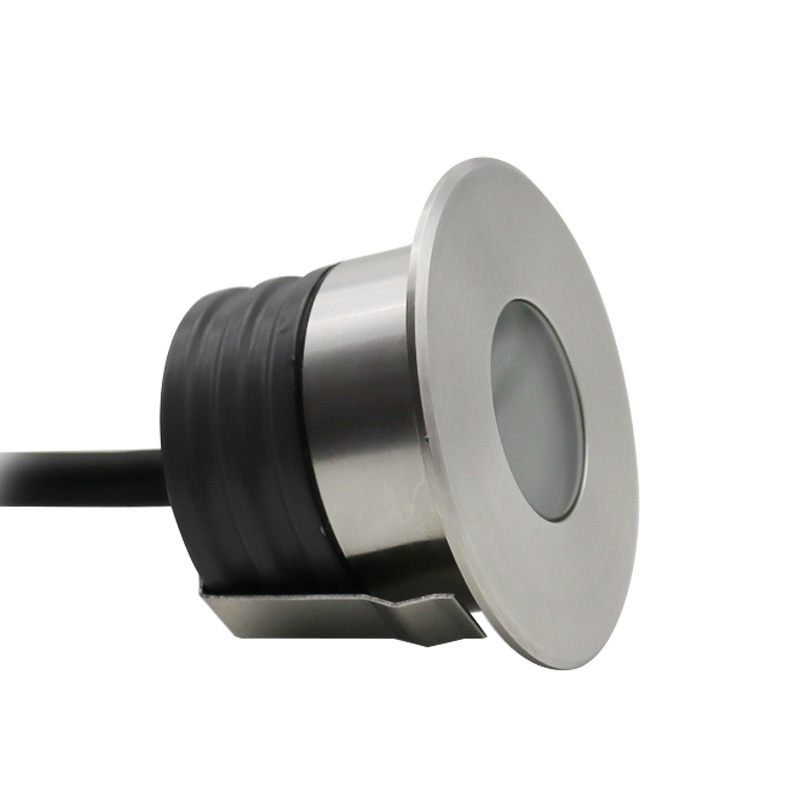

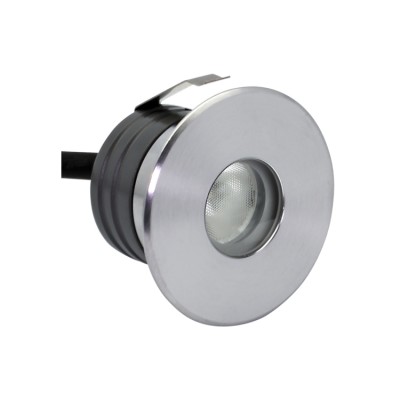

IP67 1W 2W 3W White or RGB Mini 316 stainless steel IP67 with diffused glass LED inground light

Description & Specifications

1W 2W 3W 4W 5W 6W 7W 8W 10W 12W 15W 16W 18W 24W 36W 48W 72W IP67 1W 2W 3W Single color/ RGB Outdoor LED Underground Light LED Stair Lamp Recessed LED Step Light Garden Floor Inground Lighting

Front Cover: 304# or 316# Stainless Steel

Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1/ASTM class 4B

LED Source: 1x1W/1x2W/3xSMD5050 single color/3xSMD5050 RGB3in1 Cree/Bridgelux LED

Lens: Optical lens, efficiency ≥85%

Glass: Tempered step glass T=7mm

Glass pressure capacity: Full area=1700kgs

Gasket: Molding shaped silicone seal

Operating temperature: -20℃ to 40℃

Power cable: H05RN-F 2x0.75mm² , L=0.5m (low voltage)

H05RN-F 3x0.75mm² , L=0.5m (Single color/high voltage)

H05RN-F 4x0.75mm² , L=0.5m (for RGB)

Mounting sleeve: ABS

Lifespan: 50000hours

3 years warranty

Optional PWM, 0/1-10V, DALI dimmable, DMX512

Size

Wattage

Leds Type

Color

Voltage

Material

Beam Angle

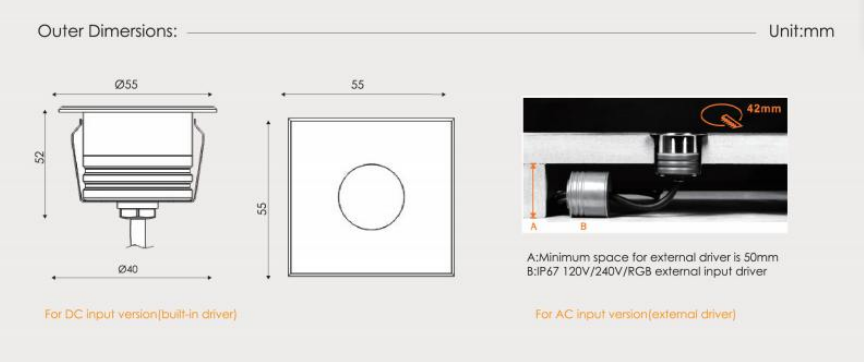

Dia55mm

0.5W/1W/ 2W/ 3W/4W

High Power LEDS/ SMD

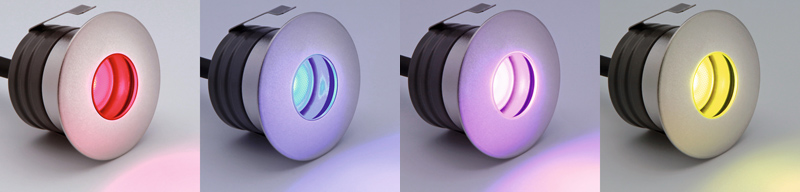

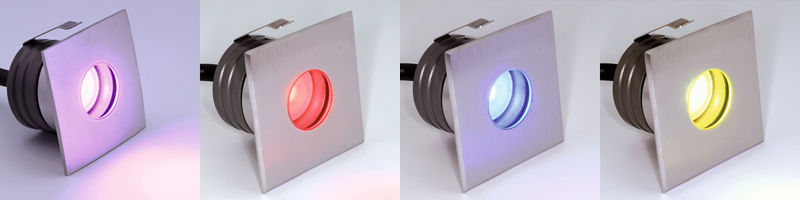

Single Color OR RGB/RGBW

DC12V /DC24V AC100-240V

SS304/SS316

IP67

8/15/25/30/45/60

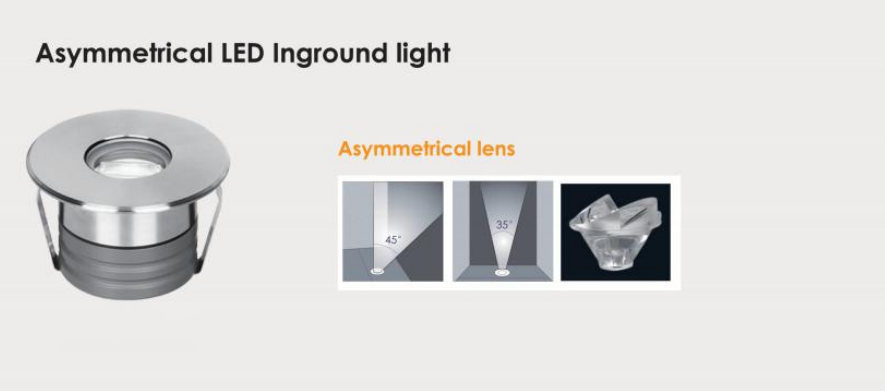

asymmetrical lens

Notice

For more details and exactly correct pricing cost, or need the OEM special products assisting, Please click inquiry for us or contact us directly via sales@lightac.com or sales@lightaclighting.com by email.
