Solar Street Light SSL710

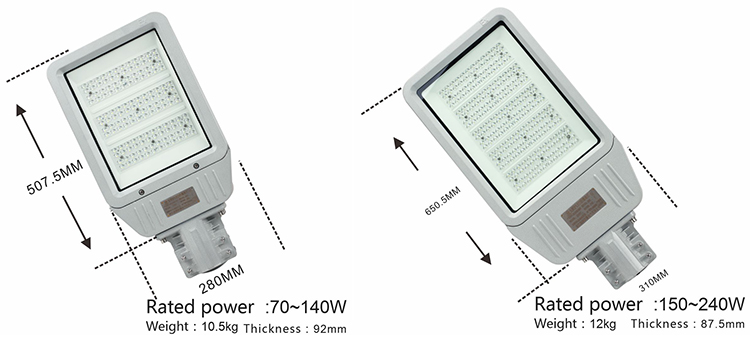

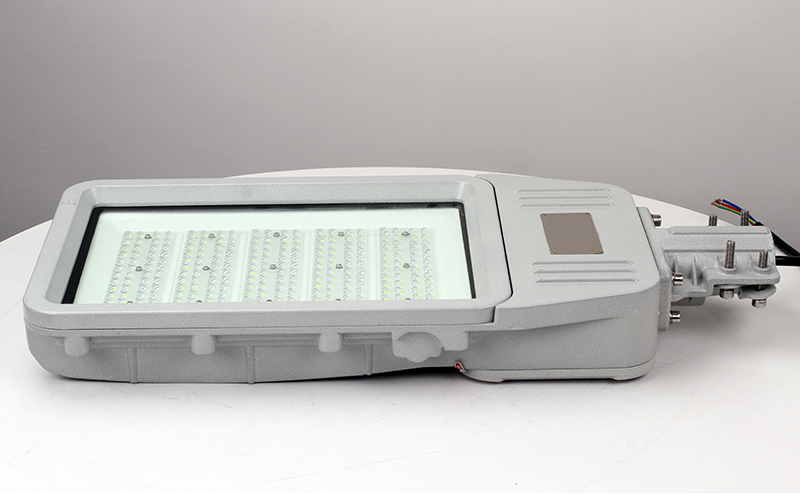

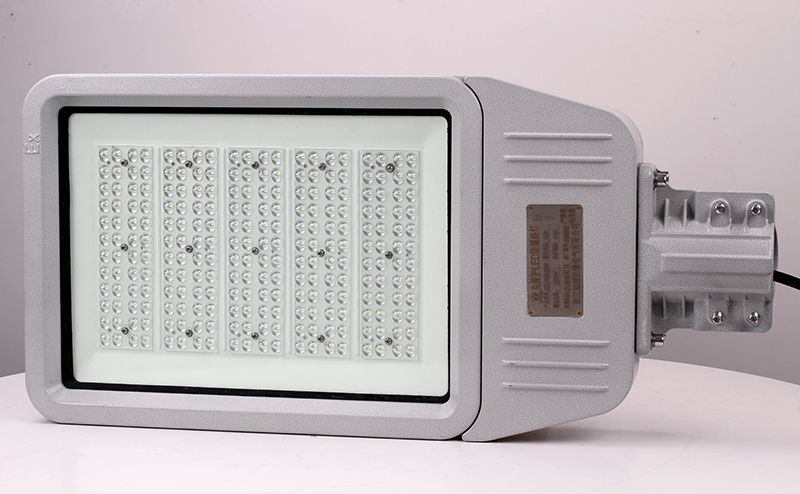

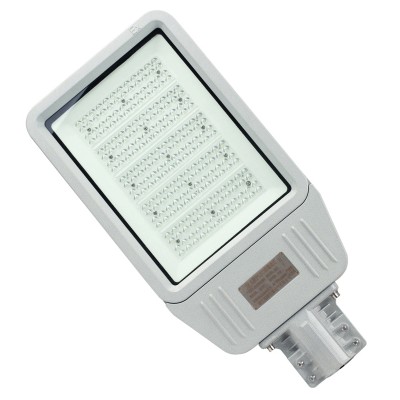

Solar Explosion Proof LED Street Light For Hazardous Area 150W-240W Explosion-Proof Industrial Lights

Description & Specifications

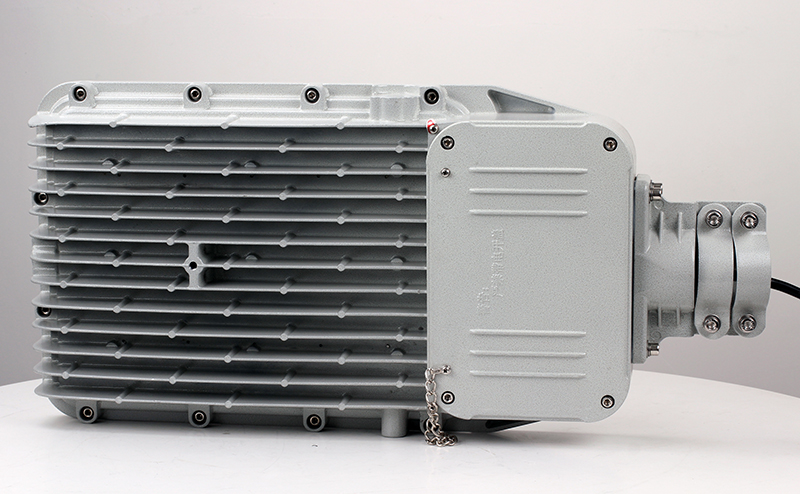

1. The radiator is designed to be made of special cast aluminum alloy by die-casting, and its surface is sprayed with high voltage static electricity;

2. Exposed stainless steel fasteners with high corrosion resistance;

3. Separate structure of light source cavity and power supply cavity;

4. Specially designed light distribution system, with high light utilization rate, reasonable light distribution, uniform illumination and no glare;

5. The junction box is of labyrinth structure, equipped with silicone rubber sealing strip, firmly pasted, and of high protection grade;

6. Toughened glass made of high-strength material, with strong impact resistance, thermal shock resistance and high light transmittance;

7. The constant current power supply has wide voltage input and constant current output, and has the protection functions of shunt, surge prevention, overcurrent, open circuit, open circuit, high temperature, anti electromagnetic interference, etc;

8. Power factor cos φ ≥0.95;

9. The combined emergency device can be equipped according to the use requirements. When the power supply is cut off, it can automatically switch to the emergency lighting state;

10. Cable routing.

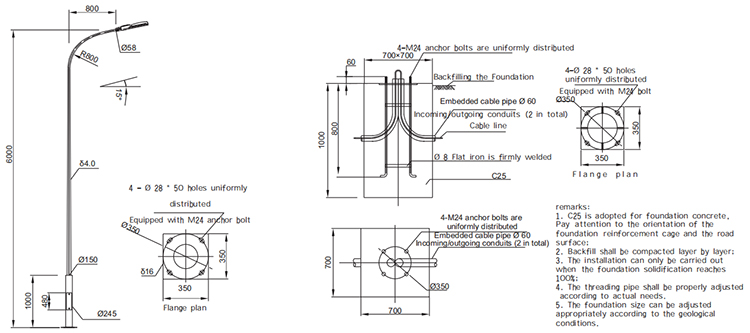

explain:1. The lamp pole is made of Q235A high-quality carbon steel, hot dip galvanized inside and outside, electrostatic spraying after surface treatment, conical pole structure design, strong wind resistance, up to 35m/s.2. The lamp pole is installed with flange plate and fixed with double nuts.



explain:

1. The lamp pole is made of Q235A high-quality carbon steel, hot dip galvanized inside and outside, electrostatic spraying after surface treatment, conical pole structure design, strong wind resistance, up to 35m/s.2. The lamp pole is installed with flange plate and fixed with double nuts.

1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;3. Suitable for IIA, IIB and IIC explosive gas environment;4. Applicable to T1~T6 temperature groups;5. It is applicable to energy-saving transformation projects and places where maintenance and replacement are difficult;6. It is widely used for road and street lighting in oil exploitation, oil refining, chemical industry, gas station, textile, food processing, offshore oil platforms, oil tankers, etc.
