Please kindly note:
Below description is just for your reference, contact us if you in need more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.
High LUMEN
170lm/W
Best Colling Structure:
1070 pure Aluminum
Dimming：
PNG; 0~10V; DALI

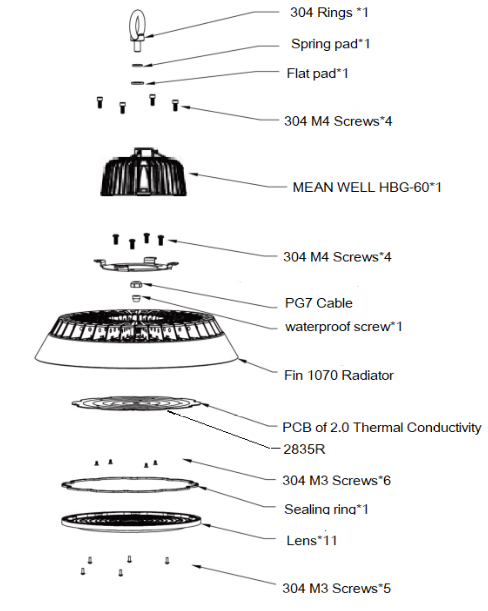

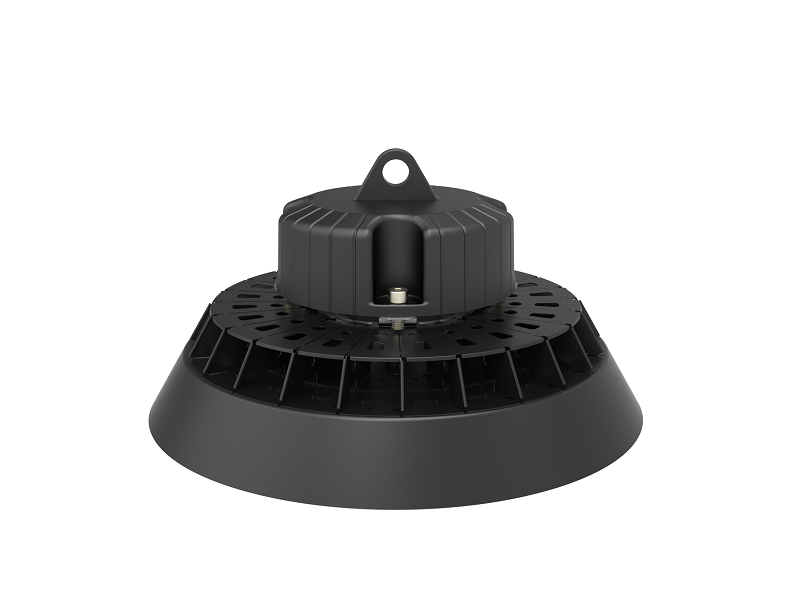

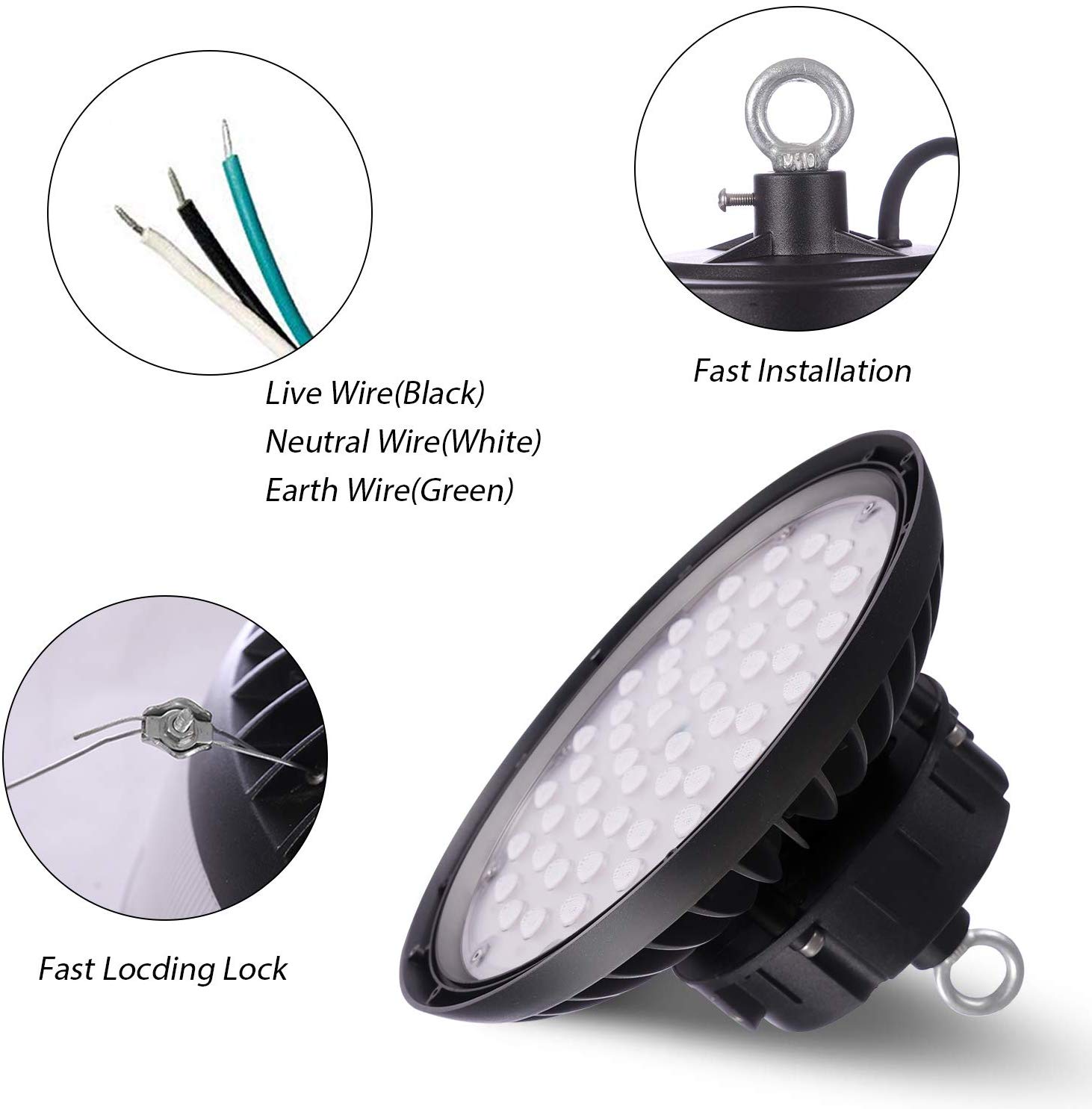

Detailed Images

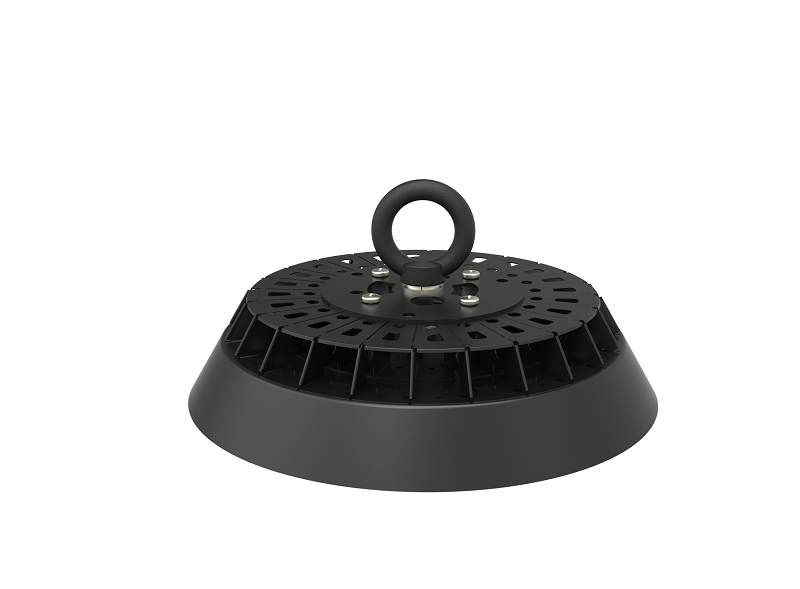

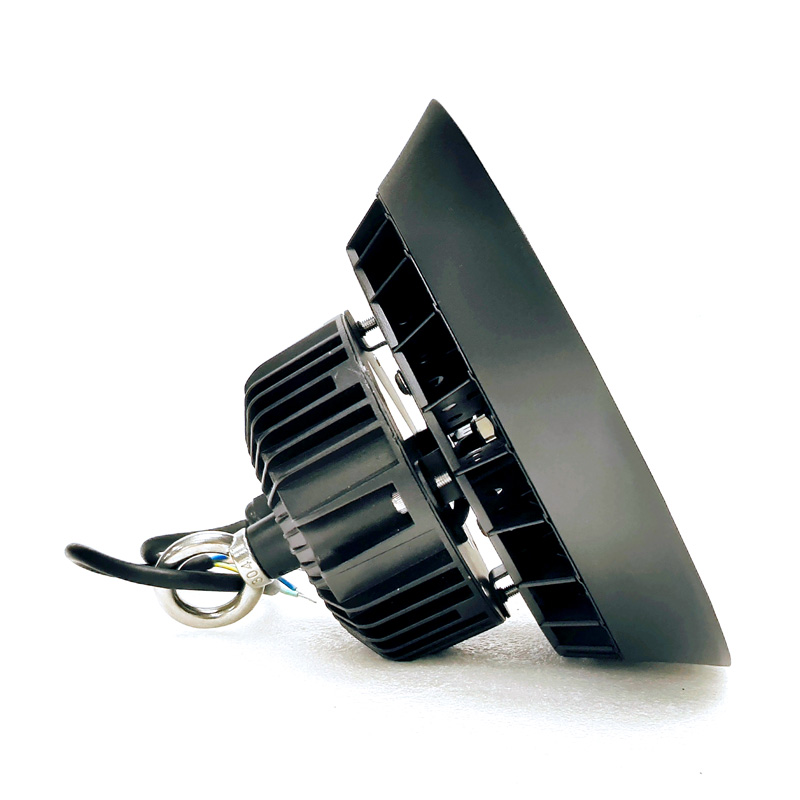

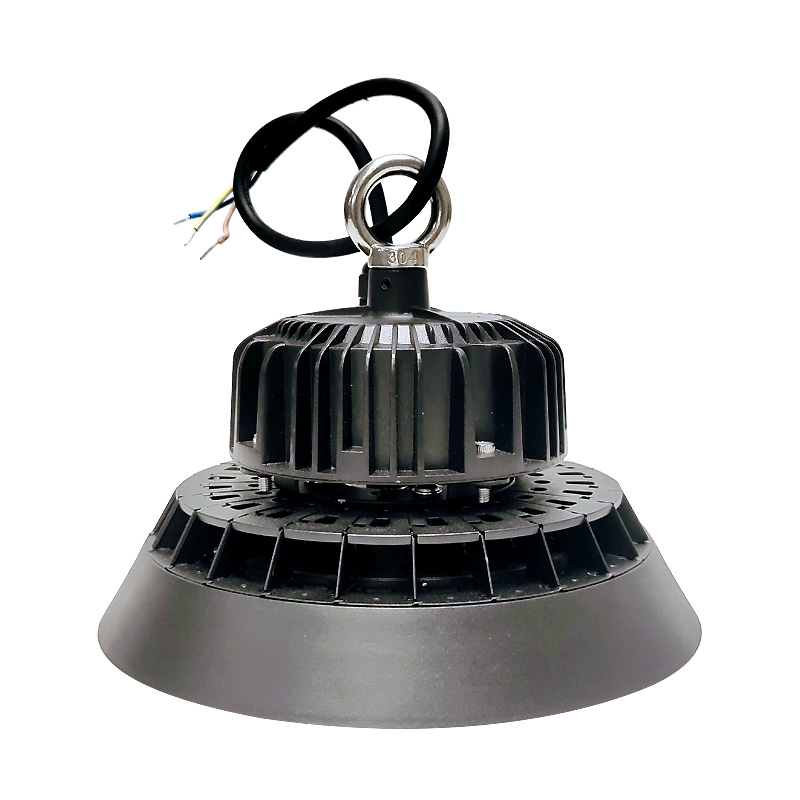

Constructed of industrial grade
1070 pure aluminum housing
with excellent heat-dissipation

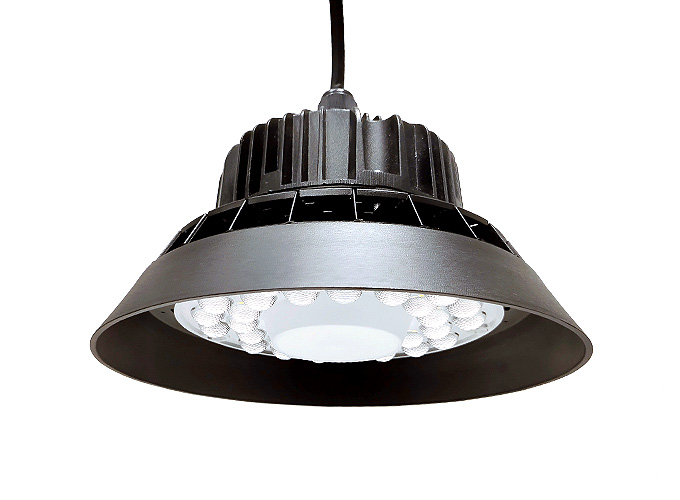

SMD 2835-LEDs, Meanwell LED driver and excellent surge protection, the high bay lighting fixtures ensure high performance for more than 50,000-hour of continuous use
It’s operation temperature is from -40 ℉ to 158 ℉. So it widely used in wet location rated for indoor and outdoor

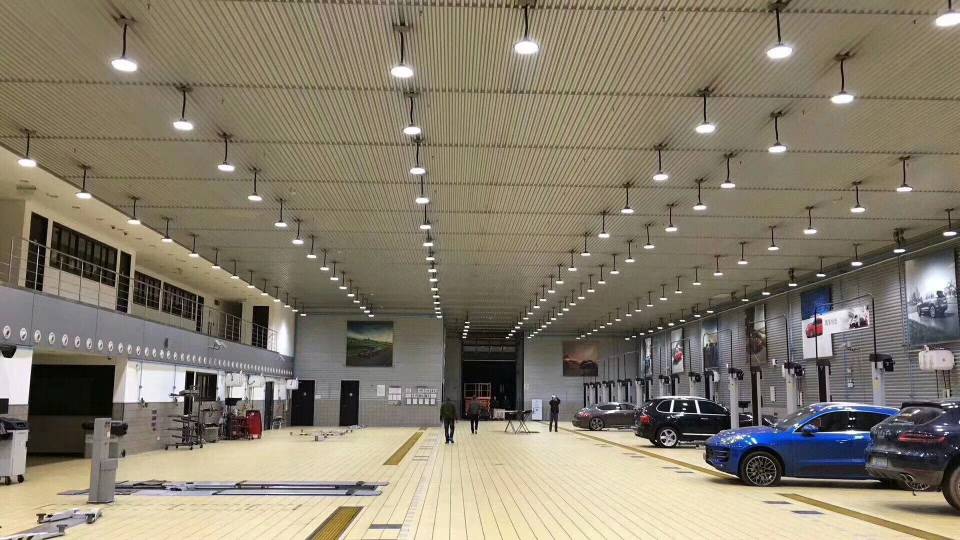

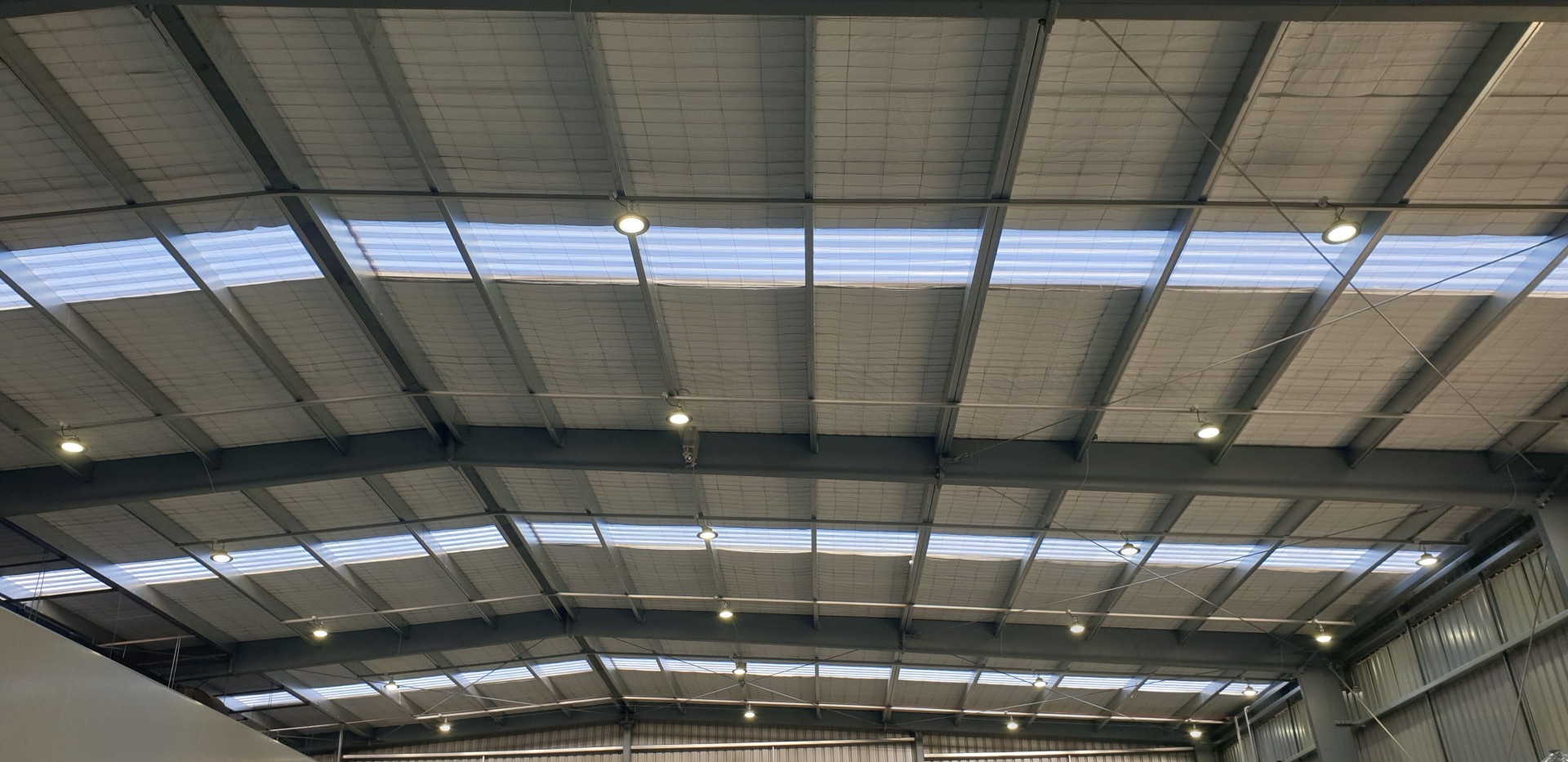

Application:
Warehouse, workshop, factory, Stadium court lightFunction: Commercial and Industrial Lighting
Style: Round shape
| Product Name | LED high bay light |
| Power | 50W±5% |
| LUMINOUS EFFICIENCY | ≥170LM/W |
| Input Voltage | 90-295V/AC |
| Frequency | 50～60Hz |
| Power Factor | ≥0.95 |
| CCT | 3000K~7000K customized |
| LED light sourse | SMD 2835R 120pcs |
| Driver | Meanwell HBG-60-1400 |

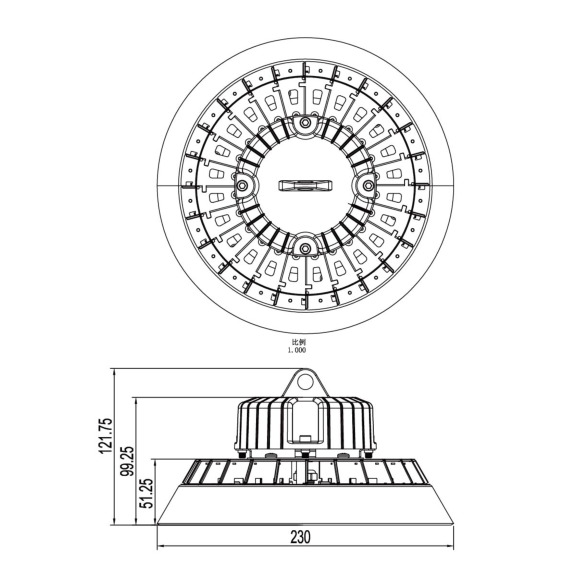

| Product size: | 230*122mm |

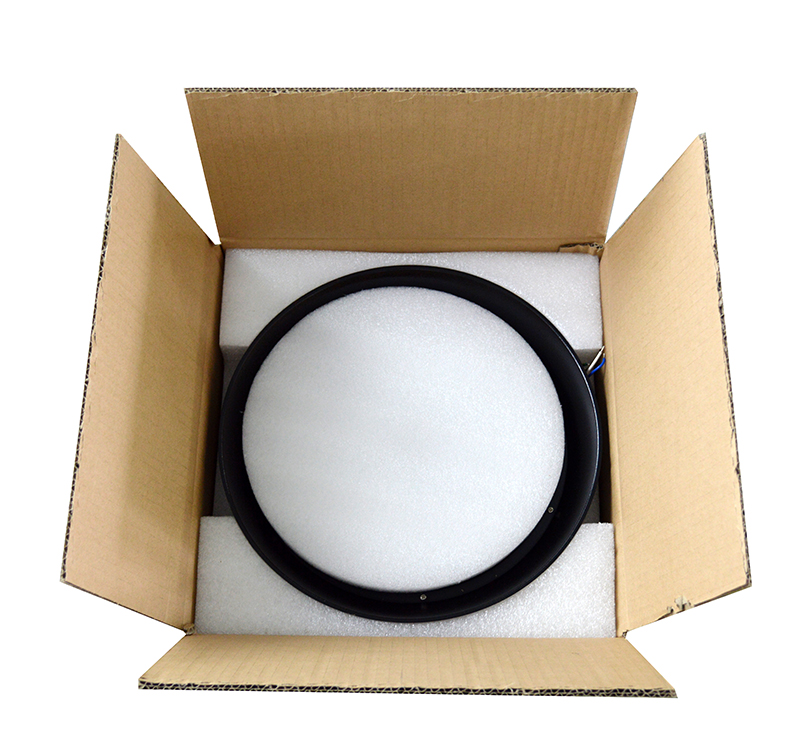

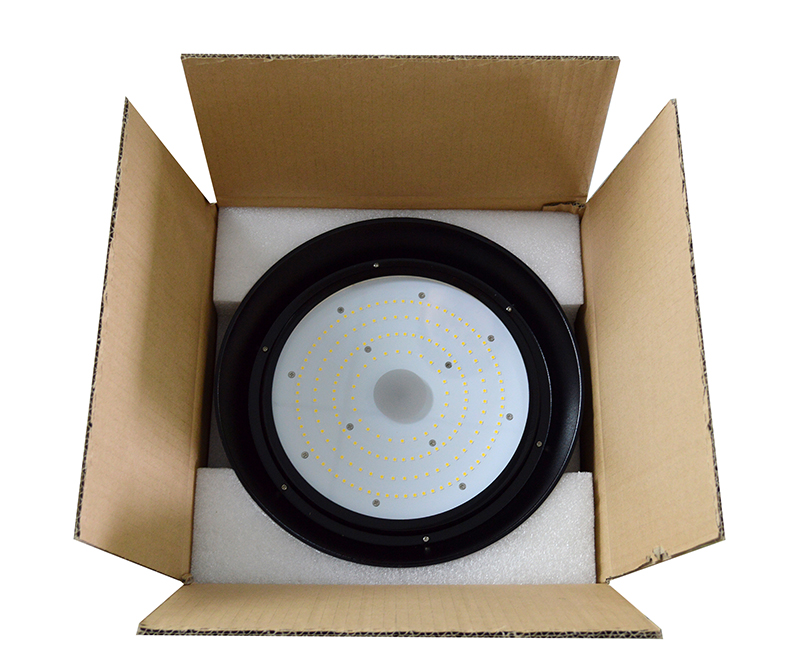

| Package size | 260*260*155mm |
| Product weight | 1.3kg |
| Material | 1070 pure Aluminum |
| Cooling structure | Fin 1070 |
| Beam angle | 60°/90° optional |
| WORKING TEMPERATURE | 35℃～55℃ |
| Dimming | 0-10V/PWN/or DALI |
| Energy Efficiency Rate | A++ |
| Lifespan | ≥50000H |

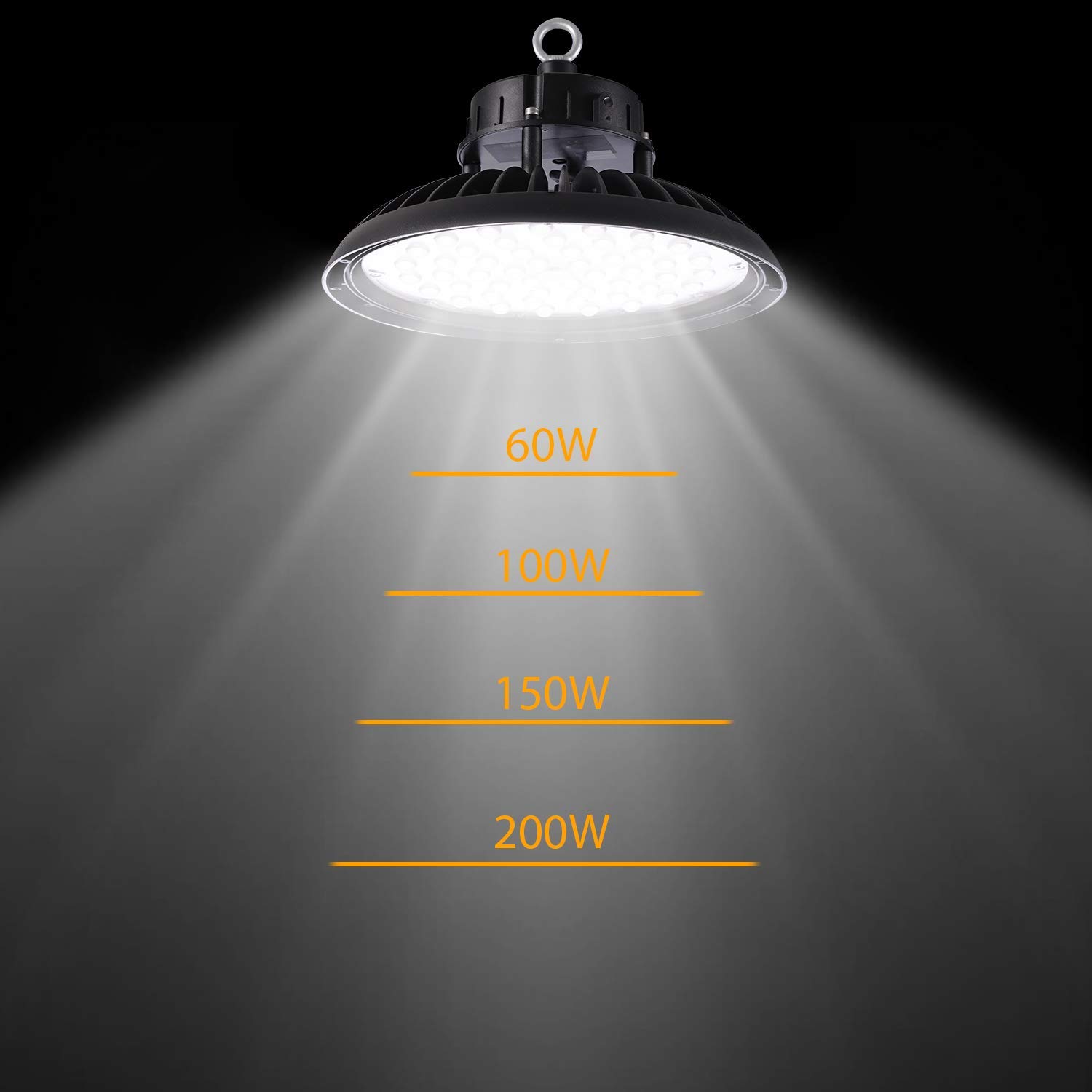

| Power | Product size (mm) | Weight (kg) | Package size (mm) | Package Qty / Ctn |
| 60W | Ф230*122 | 1.3 | 260*260*160 | 1 |
| 100W | Ф270*184 | 2.0 | 300*300*180 | 1 |
| 150W | Ф330*194 | 2.75 | 370*70*190 | 1 |
| 200W | Φ380*203 | 3.3 | 420*420*220 | 1 |
For more details and exactly correct pricing cost, or need the OEM special products assisting, Please click inquiry for us or contact us directly via sales@lightac.com or sales@lightaclighting.com by email.
| The Company | Lightac Industry Co.,Limited |
| The contact | Jack Chen |
| The Address | No.20, Central south business park, Chongchuan district,226004, Nantong city,Jiangsu province,China |
| The Website | (Lighting B2B): http://www.lightsb2b.com/ |
| The E-mail | sales@lightac.com sales@lightaclighting |
inquiry
inquiry
inquiry
inquiry
inquiry
inquiry
inquiry
inquiry
inquiry
inquiry
inquiry
inquiry

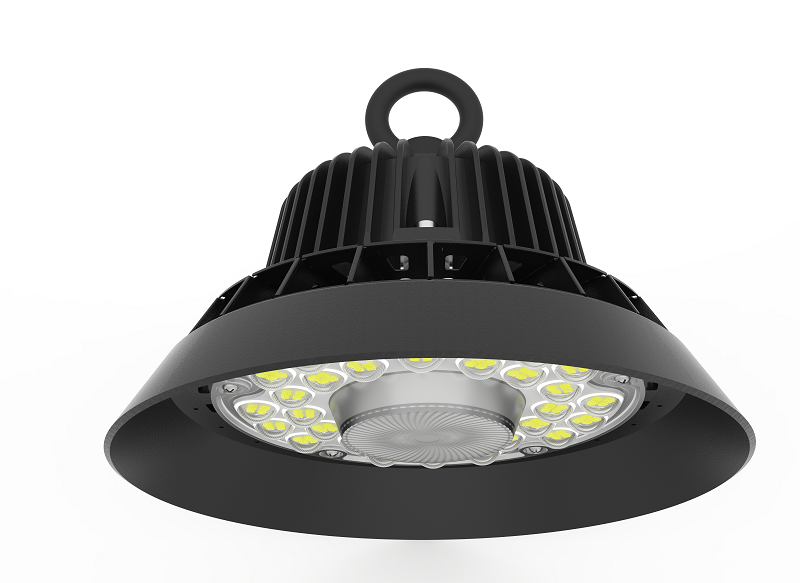

LED High Bay Light HBL170
