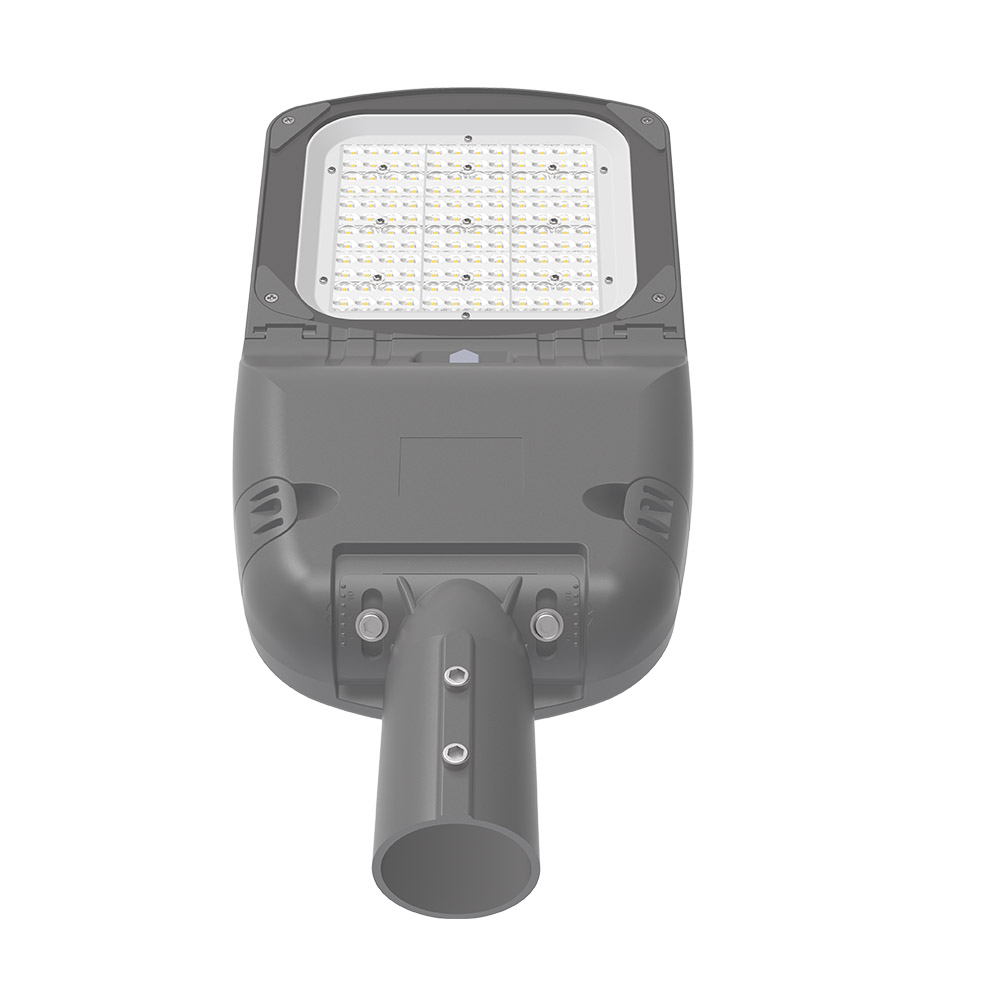

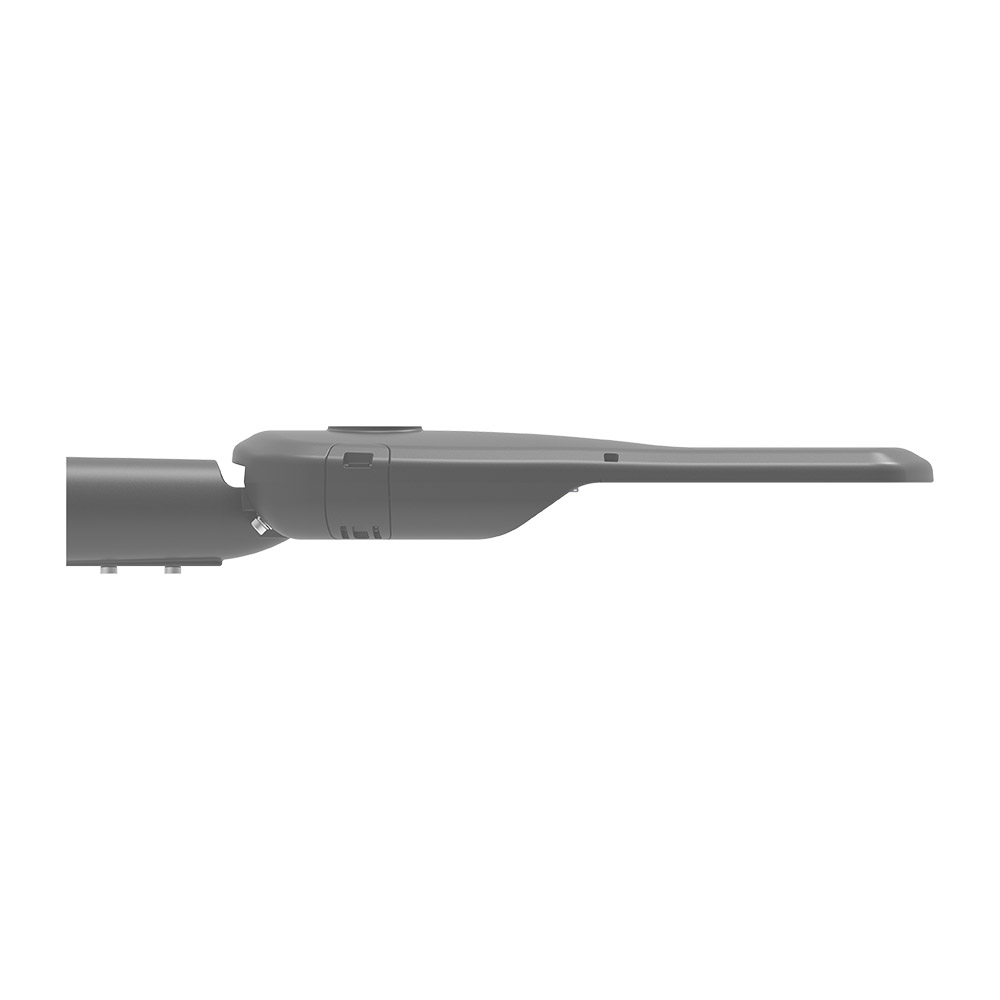

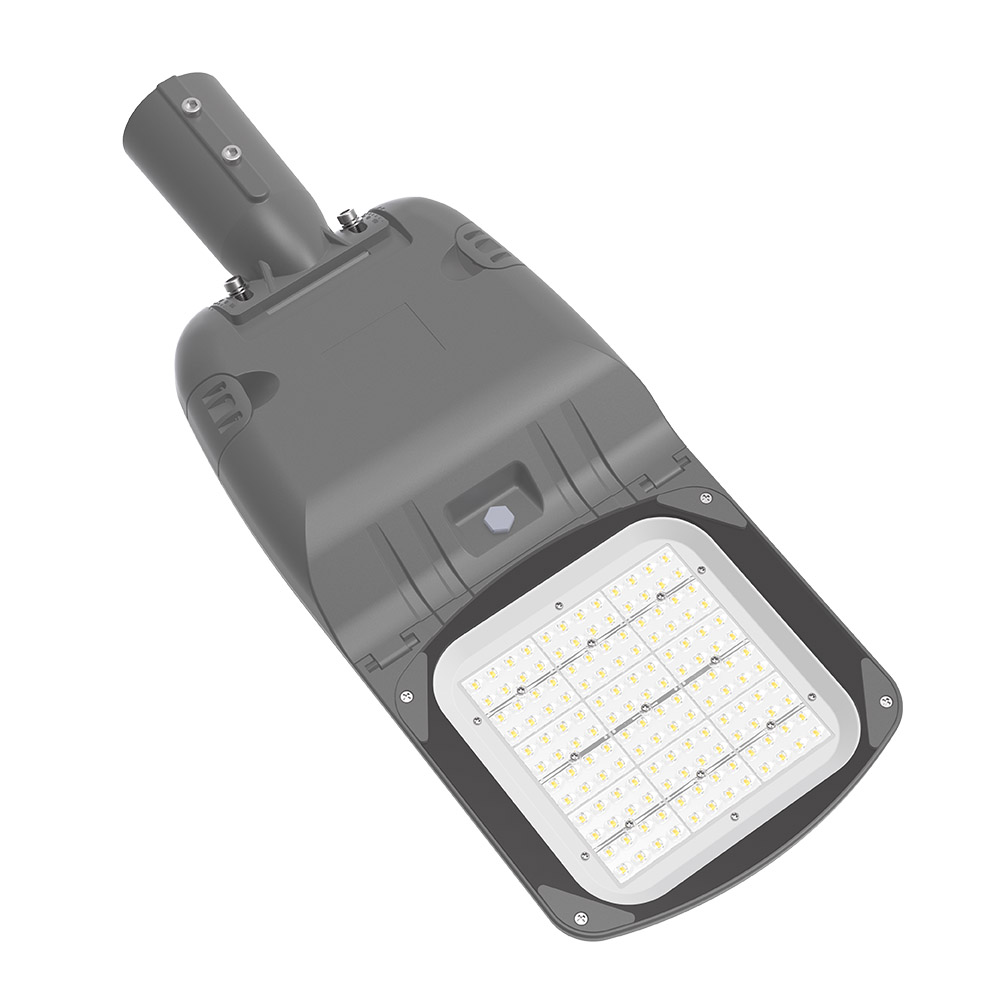

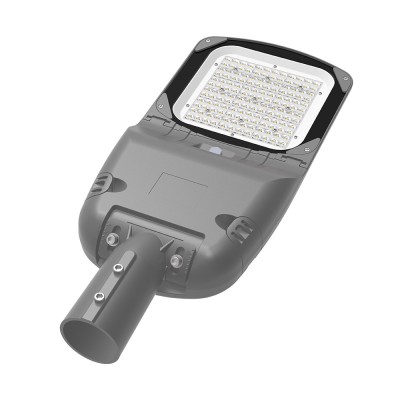

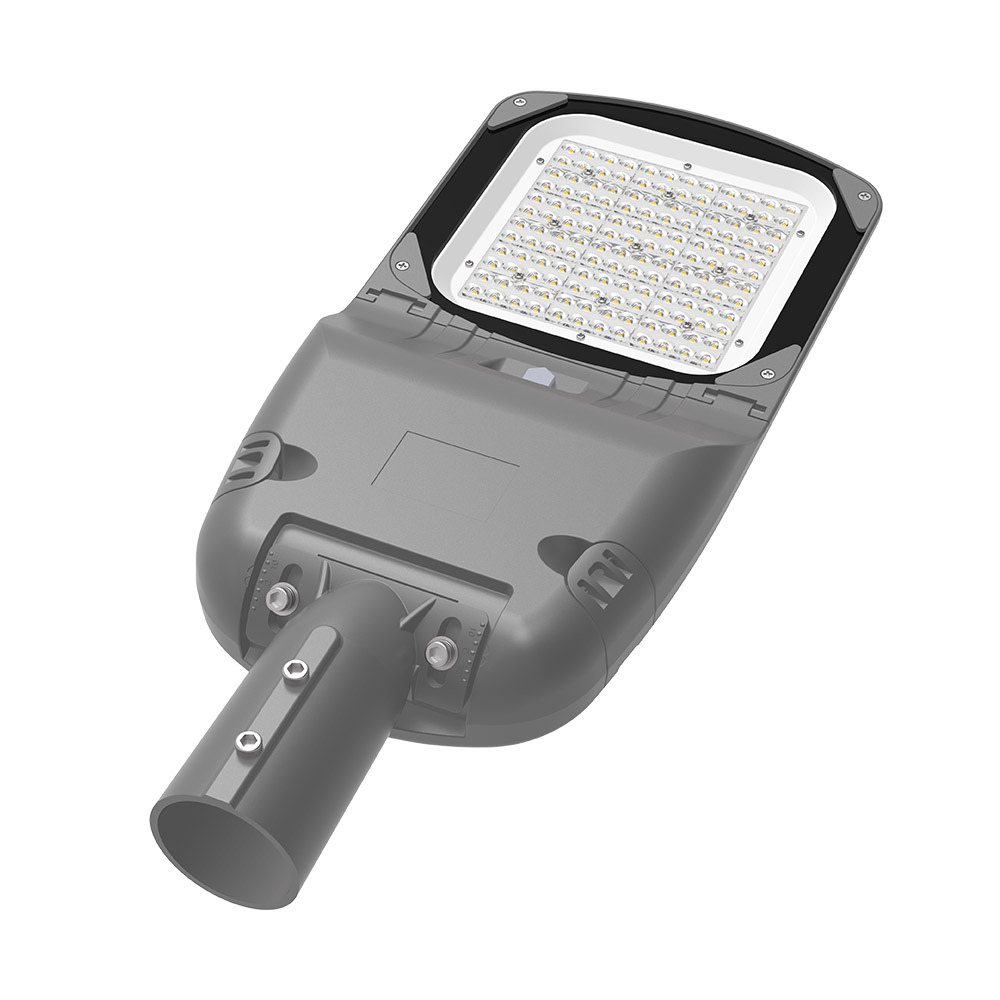

LED Street Light STR140

Led Street Light 135LM/W High Lumen 50w 100w 150w 200w For Garden Road Lighting Die Casting Aluminum

Description & Specifications

Video Description

Features:

* Universal voltage:90-305VAC(50Hz/60Hz)
* High quality Epistar 3030.Excellent Optical* Internal safety isolated driver,Automatic temperature detection.PF>0.9,THD<8%.
* Die casting aluminum，Anodized surface,fadeless and corrosion resistant.
* Special heat dissipation structure/Flow linear design,excellent heat dissipation performance.
* Widely used in highway,Urban main road,station,Square,Gym,wharf,residential area and other occasions.
* IP Grade：IP65 IP66

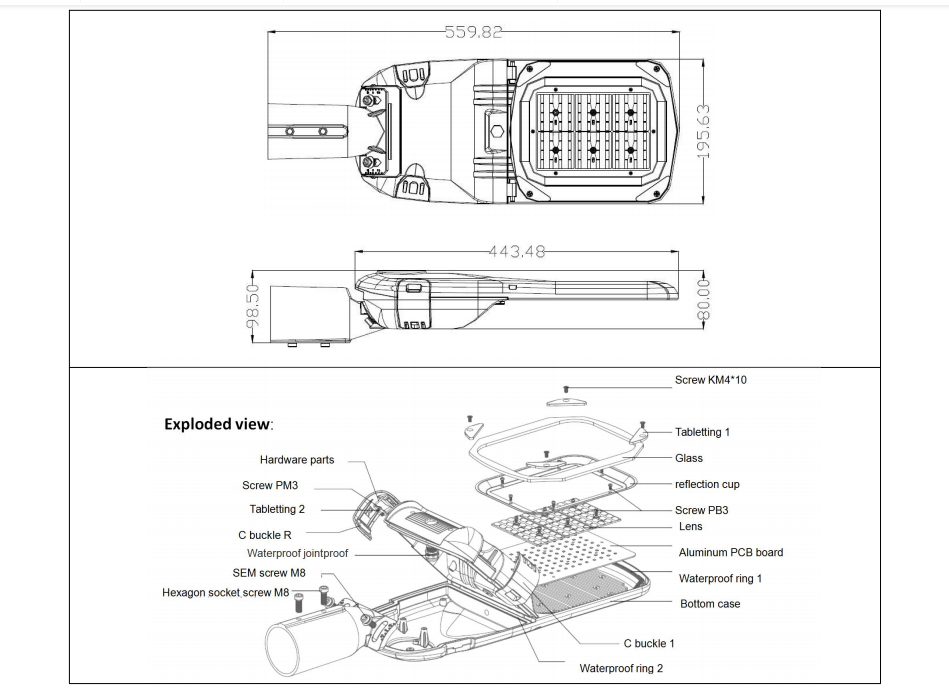

50W Size

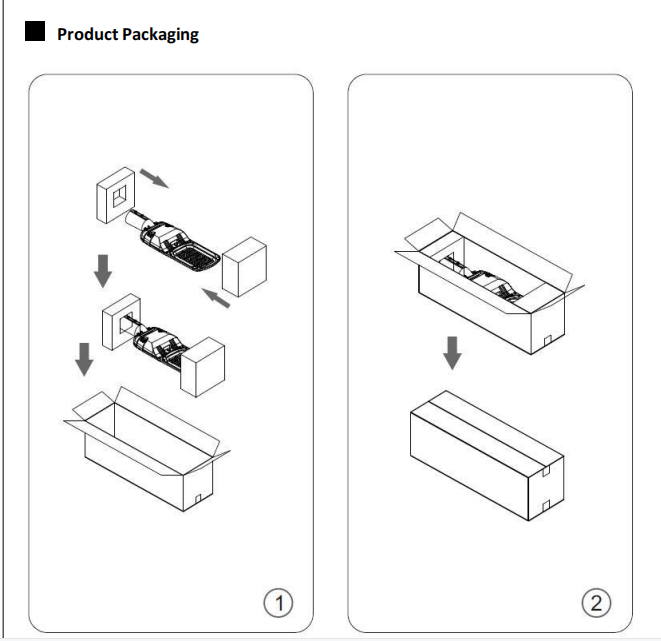

EPE+Carton box,    595*225*160mm(1Pcs/CTN),      Product N*W：3.4KG ,       G*W:3.9KG/CTN

Installation Instruction

★Before Installation,Ensure the voltage,Frequency is consistent with the voltage range specified on the product label.
★Must be installed and operated by qualified professionals,Read installation instruction carefully.
★Make sure the lamp installed firmly and wiring correct,To avoid short circuit to damage the lamp causing fire.
★Do not operate with electricity,
★Please check the circuit after installation then power on test, to avoid electric shock

Caution

* Make sure the ceiling or post can support the weight of lamp.
* The accessories must be installed firmly.
* Please check the circuit after installation then power on to do test,to avoid electric shock.
* Do not open the lamp privately to change the electrical structure,In case damage the lamp,The resulting damage is not covered
  by the warranty.
* Do not soak the lamp into the water directly.
* Do not look at the lamp for long time to protect the eyes from damage.
