LED Tri proof Light TPL300

100lm/w 4ft 40w batten fitting led tube light triproof light

Description & Specifications

Wet Location Supermarket Tri-proof Vapor Tight LED 4Ft

FEATURES

- Options clear/opal shatter-proff polycarbonate diffuser

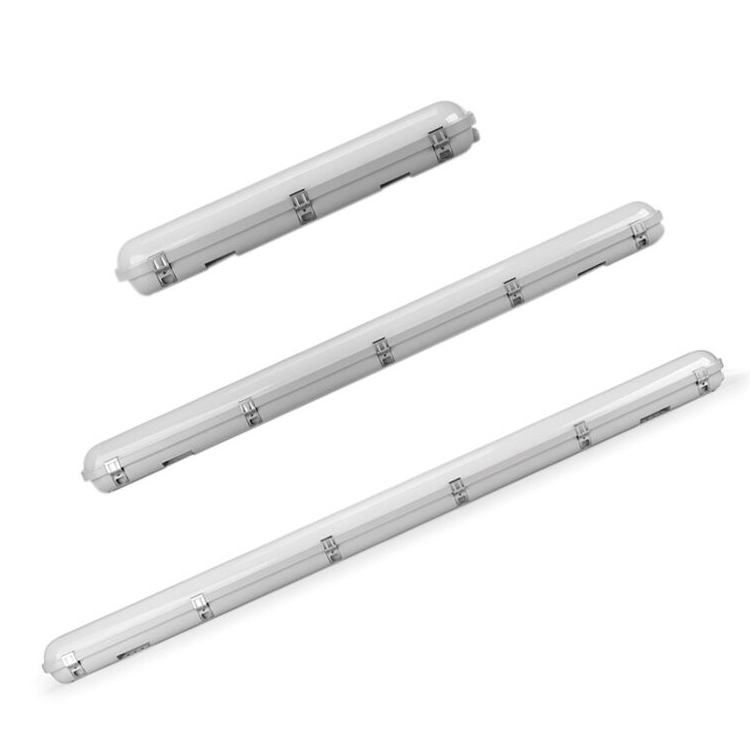

- Full range of lengths, wattages and lumen package

- 600 (2ft)

• Single 20W, 2,780 lm(Clear), 2,570 lm(Opal)
• Twin 30W, 4,175 lm(Clear), 3,850 lm(Opal)
- 1200 (4ft)
• Single 30W, 4,175 lm(Clear), 3,850 lm(Opal)Non-dimmable

• Single 40W, 5,580 lm(Clear), 5,176 lm(Opal)0-10V dimmable

• Twin 50W, 6,990 lm(Clear), 6,430 lm(Opal)

- 1500 (5ft)

• Single 60W, 8,320 lm(Clear), 7,750 lm(Opal)

• Twin 70W, 9,750 lm(Clear), 9,010 lm(Opal)

- 50,000 hours rated

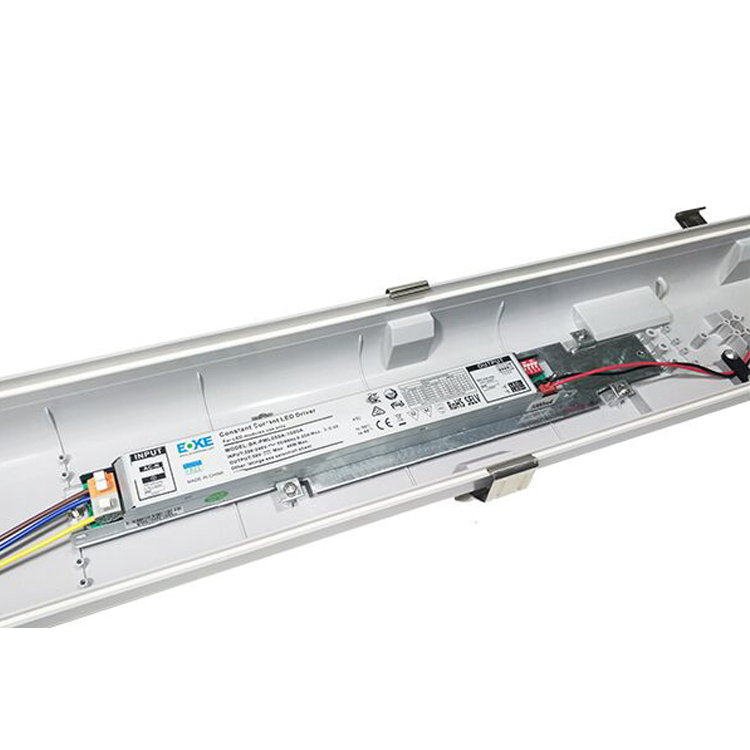

- Flicker-free driver

- PF>0.9

TECHNICAL SPECIFICATION

- Input Voltage: 200-240VAC
- Driver Type: ENEC Approved Flicker-Fredd
- Luminous Efficacy: up to 140lm/w
- Colour Rendering Index: > 80Ra

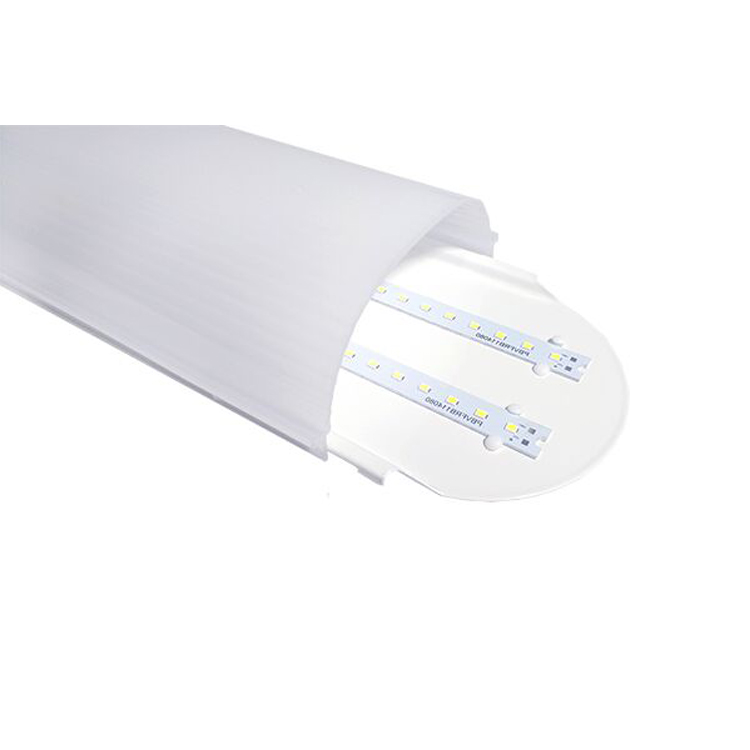

- LED Type: LM80 SMD2835
- Operating Temperature: -20°C up to 45°C
- Color Temperature: 3000K/4000K/5000K/5500K/6000K/6500K

- Material: Polycarbonate Body & Diffuser

- Ingress Protection: IP65
- Impact Rating: IK08
- Rated Life: 50,000 hours

Construction

- Grey coloured polycarbonate
- Polycarbonate diffuser integrated with

powder coated lighting tray

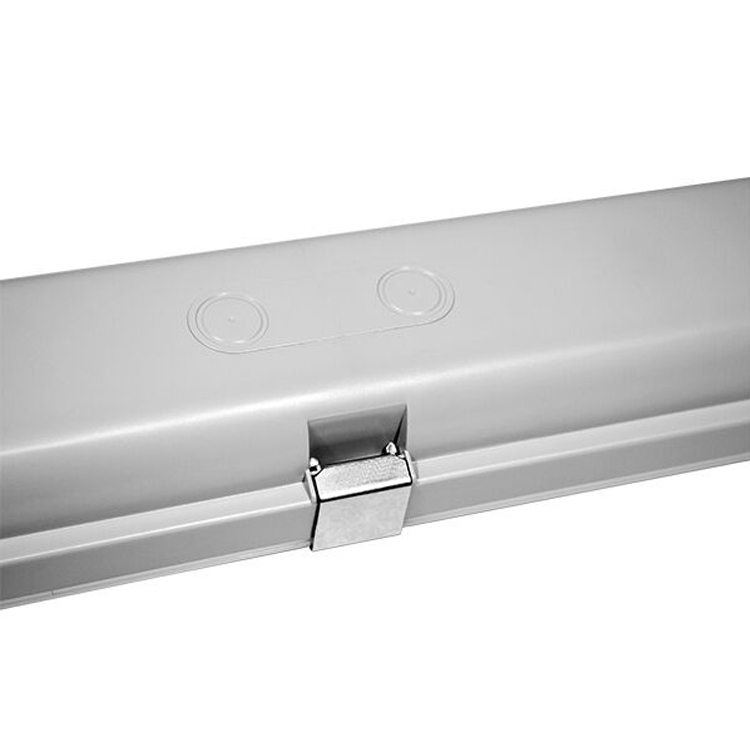

- Stainless steel clips
- Reinforced drill points in base for direct surface fixing, or conduit suspension.

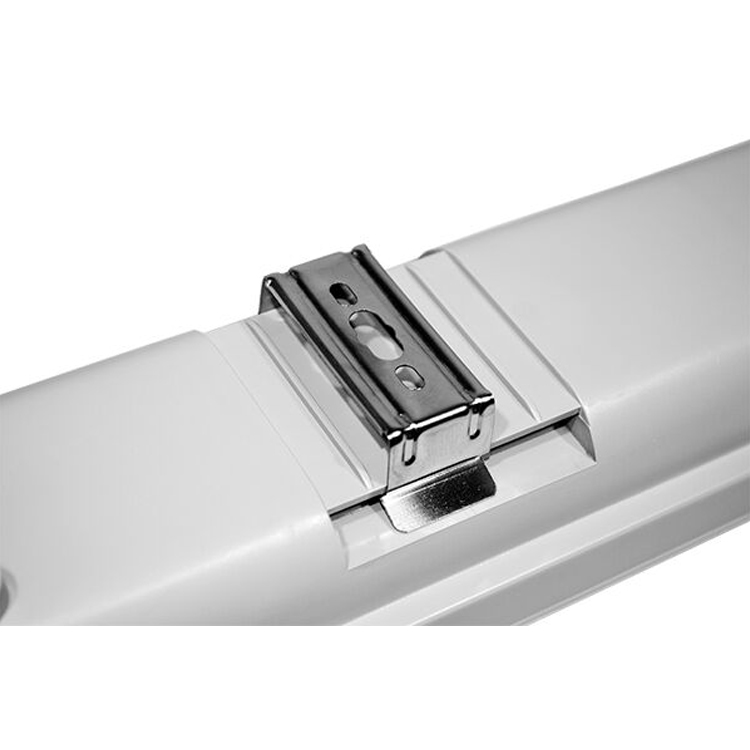

- Stainless steel surface mounting clips

- Can also be suspended form wire/chain using clips provided

Application

• -  Wet areas

• -  Outside walkways

• -  Warehouses

• -  Storage areas

• -  Industrial units

• -  Farm buildings
  (Non-corrosive atmosphere)
  - Garages
  - Workshops
  - Car parks
  - Changing rooms
  - Resistant to impace and many chemical agents, but for suitablility in specific environments please take specialist advice
