Please kindly note:
Below description is just for your reference, contact us if you in need more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.

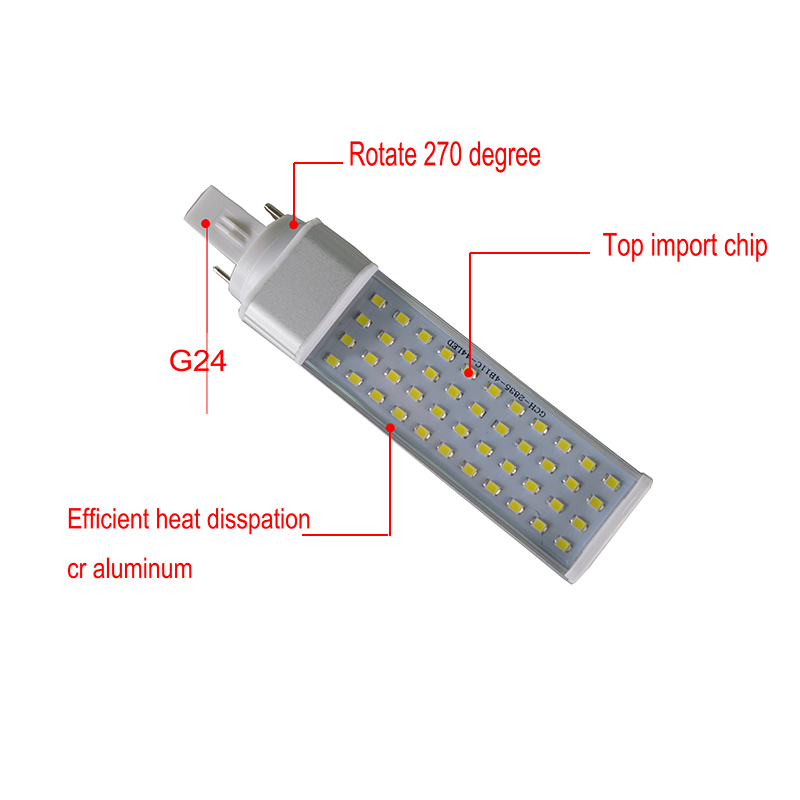

Product Advantages:
1. It can replace the traditional lamp with nice appearance.
2. The plug of the light is G23/G24/E26/E27/B22
3. The products adopt the connection of AL and PC with inner driver and Aluminum PCB; it is better for heat sink.
Lamp Size (mm) | LED Quantity (pcs) | Luminous Flux (lm) | Socket |
164mm | 60PCS | 850-940Lm | G23/G24/E26/E27/B22 |
Power | 12W |
LED Quantity | 60pcs 2835 LED |
Input voltage | 90-260VAC |
Beam Angle | 120degree |
Power Factor | >0.85 |
Power Efficiency | >92% |
Material | AL+PC |

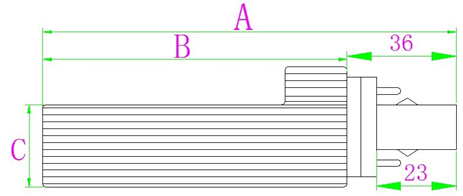

Size chart:
| Power | A | B | C |
| 5 W | 124mm | 88mm | 28mm |
| 7 W | 124mm | 88mm | 28mm |
| 8 W | 147mm | 111mm | 28mm |
| 9 W | 147mm | 111mm | 28mm |
| 10 W | 152mm | 116mm | 28mm |
| 11 W | 164mm | 128mm | 28mm |
| 12 W | 164mm | 128mm | 28mm |
| 13 W | 192mm | 156mm | 28mm |
Socket chart
Structure installation:
12W LED plug light could be installed on the G23/G24/E26/E27/B22 lamp base, pls take down the starter before installing.
Kindly Notice: before installing, please make sure the power source is off!
Aging test:
LED plug light’s aging time is over 72hours, LED plug lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.
Package detail:
Tube Length | Net Weight | Packing Size | Carton Quantity |
164mm | 0.25kg | 165*37*37mm | 1pcs/box |
Application:
Indoor usage, such as Room, Office, Hotel, School, Factory, Hospital, Building, Workshop, Coffee shop, Warehouse, Supermarket, Gymnasium etc.
For more details and exactly correct pricing cost, or need the OEM special products assisting, Please click inquiry for us or contact us directly via sales@lightac.com or sales@lightaclighting.com by email.
| The Company | Lightac Industry Co.,Limited |
| The contact | Jack Chen |
| The Address | No.20, Central south business park, Chongchuan district,226004, Nantong city,Jiangsu province,China |
| The Website | (Lighting B2B): http://www.lightsb2b.com/ |
| The E-mail | sales@lightac.com sales@lightaclighting |
